Vacuum Ball Valve Series- Vacuum Manually Ball Vales

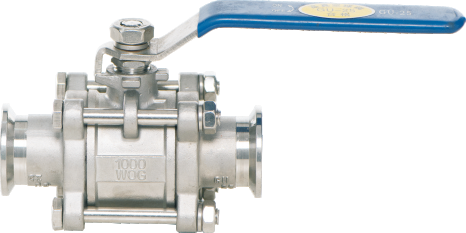

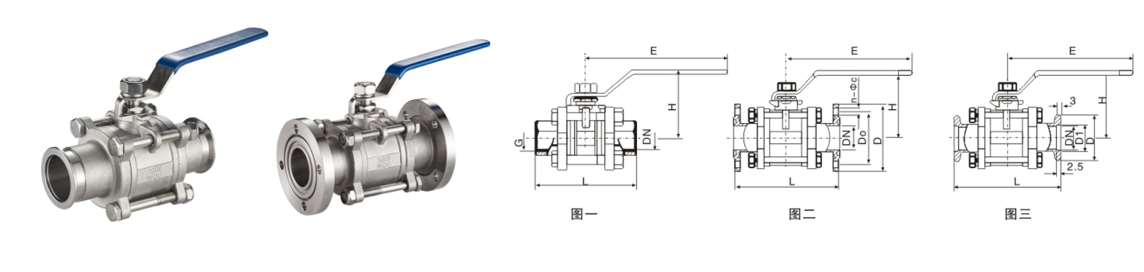

Shape and Connection Dimensions
| Model No. | DN | G | H | E | L | Parts No. |
| BVG-10-M | 10 | 1/4“ | 52 | 105 | 68 | 31046000 |
| BVG-16-M | 16 | 1/2“ | 64 | 130 | 72 | 31046001 |
| BVG-20-M | 20 | 3/4“ | 67 | 130 | 82 | 31046002 |
| BVG-25-M | 25 | 1“ | 83 | 165 | 90 | 31046003 |
| BVG-32-M | 32 | 1-1/4“ | 89 | 165 | 112 | 31046004 |
| BVG-40-M | 40 | 1-1/2" | 100 | 190 | 120 | 31046005 |
| BVG-50-M | 50 | 2" | 125 | 190 | 145 | 31046006 |
| BVG-63-M | 63 | 2-1/2" | 150 | 250 | 185 | 31046007 |
| BVG-80-M | 80 | 3" | 161 | 250 | 210 | 31046008 |
| BVG-100-M | 100 | 4" | 180 | 280 | 268 | 31046009 |
Live Flange Connention
| Model No. | DN | D | Do | H | E | L | n-Фc | Parts No. |
| BVF-10-M | 10 | 55 | 40 | 52 | 105 | 104 | 4-Ф6.5 | 31046100 |
| BVF-16-M | 16 | 60 | 45 | 64 | 130 | 105 | 4-Ф6.5 | 31046101 |
| BVF-25-M | 25 | 70 | 55 | 83 | 165 | 114 | 4-Ф6.5 | 31046102 |
| BVF-32-M | 32 | 90 | 70 | 89 | 165 | 137 | 4-Ф9 | 31046103 |
| BVF-40-M | 40 | 100 | 80 | 100 | 190 | 160 | 4-Ф9 | 31046104 |
| BVF-50-M | 50 | 110 | 90 | 125 | 190 | 170 | 4-Ф9 | 31046105 |
| BVF-63-M | 63 | 130 | 110 | 150 | 250 | 200 | 4-Ф9 | 31046106 |
| BVF-80-M | 80 | 145 | 125 | 161 | 250 | 225 | 8-Ф9 | 31046107 |
| BVF-100-M | 100 | 165 | 145 | 180 | 280 | 280 | 8-Ф9 | 31046108 |

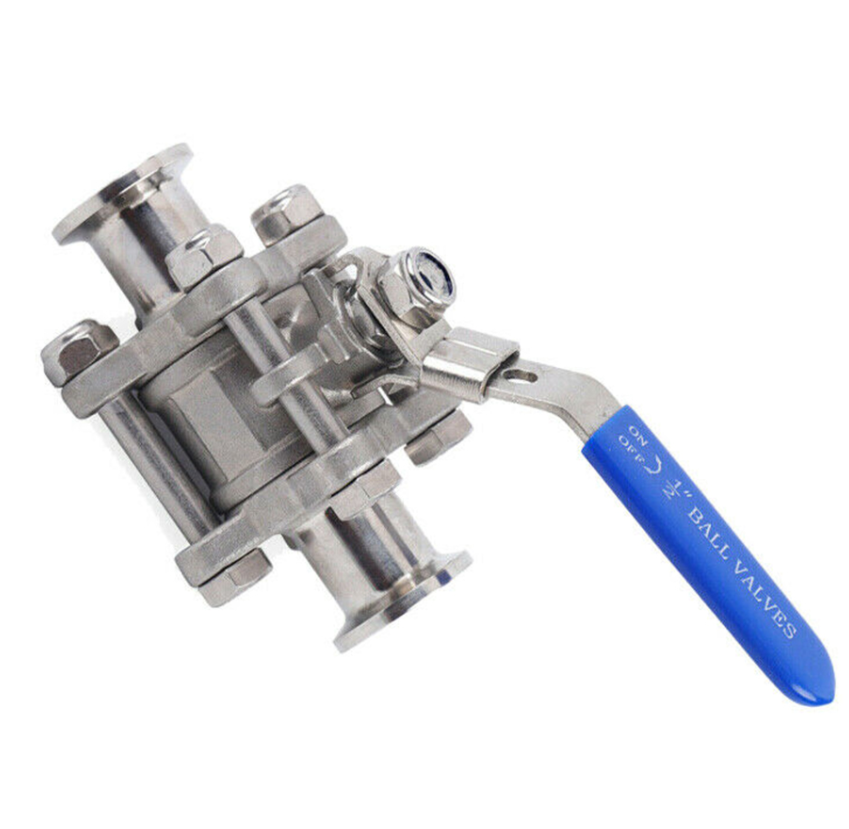

Quick, unload the Flange Connention
| Model No. | DN | D | Do | H | E | L | Parts No. |
| KFBV10-M | 10 | 12.2 | 30 | 52 | 105 | 104 | 31016800 |
| KFBV16-M | 16 | 17.2 | 30 | 64 | 130 | 105 | 31016801 |
| KFBV25-M | 25 | 26.2 | 40 | 83 | 165 | 114 | 31016802 |
| KFBV40-M | 32 | 41.2 | 55 | 100 | 190 | 137 | 31016803 |
| KFBV50-M | 40 | 52.2 | 75 | 125 | 190 | 160 | 31016804 |
